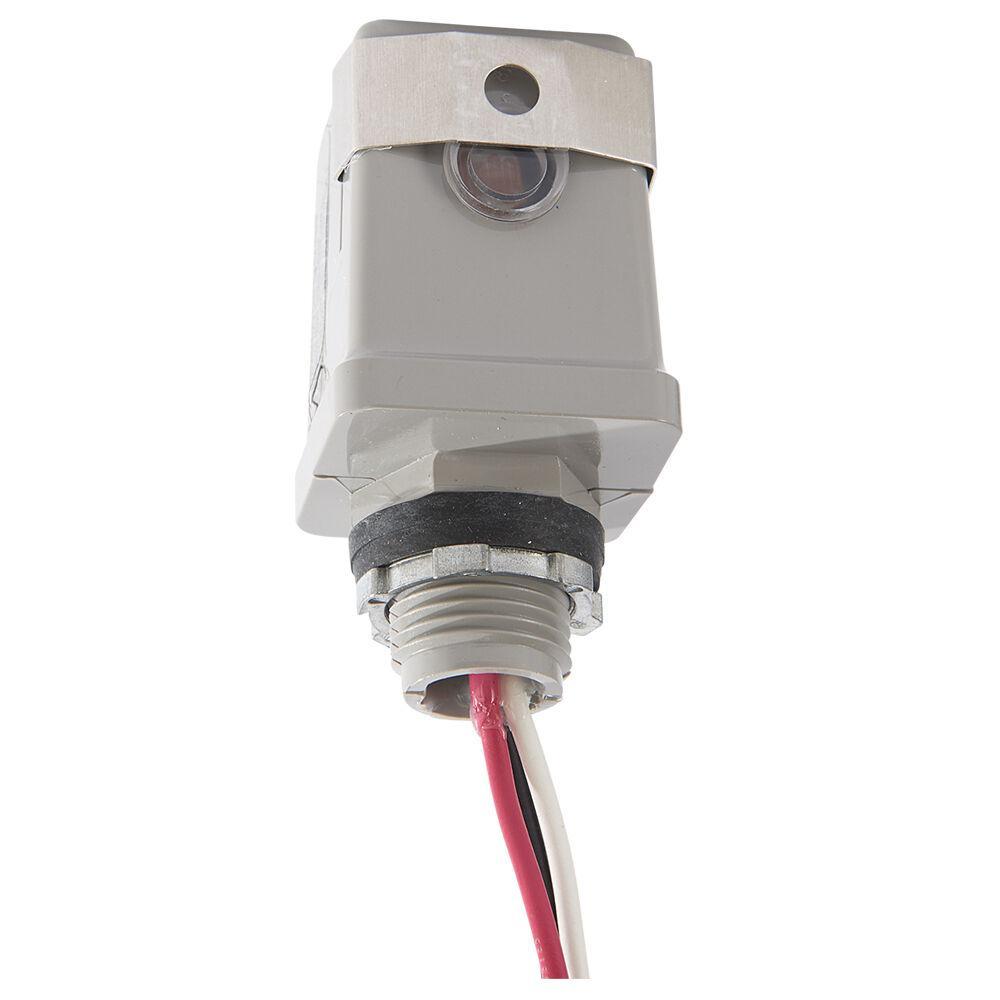

Manufacturer~Description
Intermatic
Standards/Approvals
UL Recognized, CSA, C/UL Recognized, Title CA 20 Listed, California Title 24 Compliant
Manufacturer~Code
K4123C
Package Fields
Package Description: Package Description: EACH
Package Height: 4.88
Package Height UOM: in
Package Length: 3
Package Length UOM: in
Package Quantity: 1
Package Weight: 0.24
Package Weight UOM: lb
Package Width: in
Package Width UOM: in
Amperage Rating
15/8.3 A
Amperage Rating UOM
A
Ballast Load
1700 to 2300 VA
Ballast Load UOM
VA
Color
Gray
Contact Form
SPST
Dimensions
1-9/16 in L x 1-9/16 in W x 3 in H
Environmental Conditions
-40 to 158 deg F Operating Temperature
Frequency Rating
50/60 Hz
Frequency Rating UOM
Hz
Material
Polycarbonate
Mounting Type
Box/Fixture
Sensitivity
1 to 5 FC ON/3 to 15 FC OFF
Sensor Type
Thermal/Cadmium Sulfide
Series
K4100
Timing Range
30 to 90 s
Timing Range UOM
s
Tungsten Rating
3100 to 4150 W
Tungsten Rating UOM
W
Wire Size
18 AWG
Wire Size UOM
AWG
Member SKU ID
406569806
AD SKU ID
IDW_8411078
Voltage Rating
208 to 277 V AC
Voltage Rating UOM
V AC
- Brand Code: 9682
- Brand Description: Intermatic®
- Country: USA|Canada
- Amperage Rating: 15/8.3
- Amperage Rating UOM: A
- Average Life (HR): nan
- Ballast Factor: nan
- Ballast Grade: nan
- Ballast Load (VA): 1700 to 2300
- Ballast Type: nan
- Beam Angle: nan
- Beam Angle UOM: nan
- Standards/Approvals: UL Recognized|CSA Certified|C/UL Recognized|Title CA 20 Listed|California Title 24 Compliant
